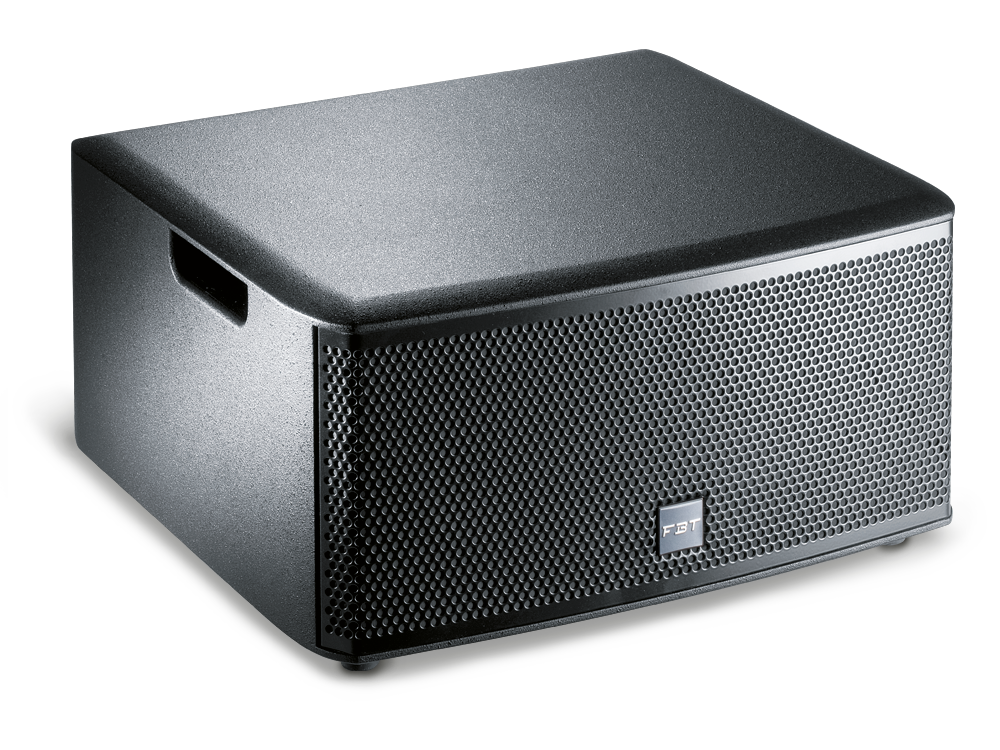

FBT ARCHON 208S
Bass reflex Compact Passive Subwoofer - 2x8" - 600Wrms - b
Artnr. 703843

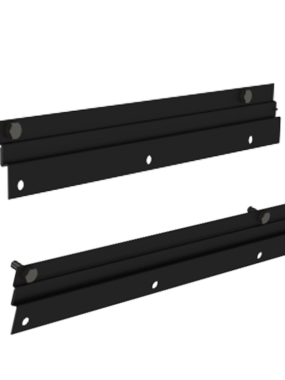

The Archon 208S provides the solution of bass reineforcement in the sound installed market with a small compact design twin 8″ loaded italian made discrete cabinet. Can be wall mounted using optional AC-W208 bracket.
- Stylish architectural cabinet design
- Acoustically transparent steel grilles with protection cloth
- High SPL, fast responding dynamics, excellent intelligibility, wide band, extremely low distortion
- Baltic birch plywood cabinets available in black or white extra texture paint
- Choice of different RAL paint colours on order
- Choice of different paint finish: glossy, matt, textured and more, on order
- Custom designed low frequency woofers, made in Italy
- Custom designed high frequency compression drivers, made in Italy
- Rotatable horns for optimal horizontal or vertical sound dispersion angle
- Selectable bi-amp/full range crossover network
- Full suspension possibilities through multiple M10 / M5 threaded rigging points and a wide range of mounting hardware
- Possibility to install line transformers for 100V/70V applications
- Possibility to order weatherproof versions for outdoor use
- Possibility to extend low frequencies performance through dedicated and compact subwoofers (Archon 208S, Archon 215S)
INPUT CONNECTOR:
2 x Speakon in & thru
DIMENSION (WXHXD):
550 x 285 x 480 mm
WEIGHT:
18 kg
FREQUENCY RESPONSE:
50Hz - 500Hz -6dB
LOW FREQUENCY WOOFER:
2 x 8 - 2 coil inch
MAXIMUM SPL CONT/PEAK:
129/132 half space dB
DISPERSION:
omni HxV
CROSSOVER FREQUENCY:
external active KHz
RECOMMENDED AMPLIFIER:
600 W RMS
LONG TERM POWER:
300 W
SHORT TERM POWER:
1200 W
NOMINAL IMPEDANCE:
8 ohm
CONFIGURATION:
1 way
