    EN54 del 24 - Högtalare för talat utrymningslarm

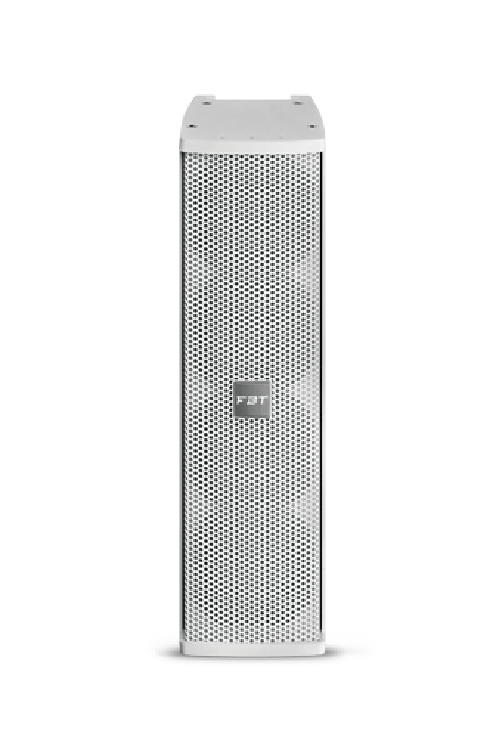

FBT CLA 403 TW White

Passive Line Array Column - 4x3” - 120Wrms - 110°H x 25°V/50

Artnr. 495320

Flera modeller tillgängliga

Bringing new coverage options to the installed sound market, the new VERTUS CLA (Column Line Array) range boasts EN54-24 certification and IP55 rating together with user switchable vertical dispersion characteristics.

  • Passive column array
  • 4 x 3” full-range custom woofers with 0.7” voice-coils
  • Frequency response from 140Hz to 20KHz
  • Vertical dispersion angle selector: 110° H x 25° V (NARROW), 110° H x 50° V (WIDE)
  • Ceramic screw-in connector with thermal fuse
  • 100V / 60W line transformer with power selector (excludable)
  • Extruded aluminum cabinet with powder coating
  • Grille with hydrophobic fabric
  • Wide availability of accessories for installation
  • Multiple CLA 803 and CLA 403 columns can be linked to increased SPL and coverage
  • IP55 rating means suitable for outdoor installation
  • EN54-24 certification means suitable for emergency and evacuation systems
  • Ideal for fixed installations in reverberant environments where requiring heightened intelligibility of both music and voice
Configuration:
1 Way
Frequency response:
140 Hz - 20 kHz -6dB
Low frequency woofer:
4 x 3" - 0.75" Voice Coil
Dimension (WxHxD):
100 x 368 x 125 mm
Weight:
2.8 KG
Recommended Amplifier:
120 W
Long term power:
60 W
Short term power:
240 W
Recommended HP filter:
130 Hz 124dB Oct
Maximum SPL continuous/peak:
113 / 116 dB
Dispersion (HxV):
110°x25° (Narrow Setting) - 110°x50° (Wide Setting)
Nominal Impedance:
16 Ohm
Sensitivity (@1W/1m):
92 dB
Input connectors:
Ceramic Terminal Block

Artnr. 703820

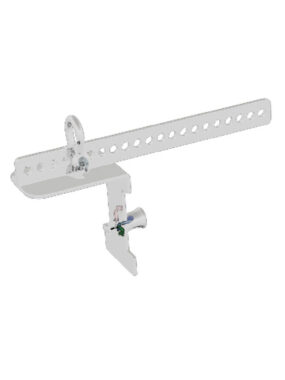

FBT VT-F 3 W

Montering till CLA 803 och CLA 403. Vit

Artnr. 703823

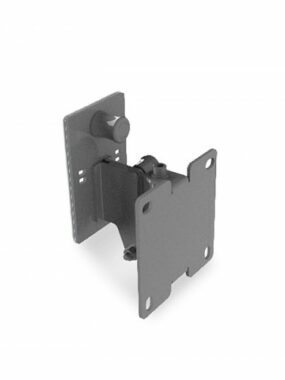

FBT VT-W 3 W

Directional wall mount for CLA 803 and CLA 403 in vertical -

Artnr. 703825

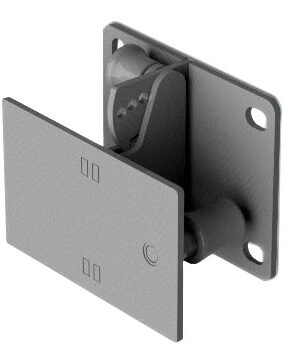

FBT VT-WH 3 W

Directional wall mount for CLA 803 and CLA 403 in horizontal

Artnr. 703817

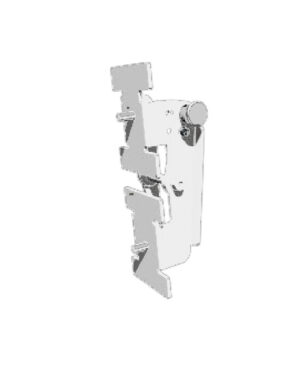

FBT VT-J 3 W

Joint Bar 0°-15° for CLA 803 and CLA 403 - White
