EN54 del 24 - Högtalare för talat utrymningslarm
-
Ljudsystem
-
Kapslingsklass IP55
FBT CLA 803 TB
Passive Line Array Column - 8x3” - 240Wrms - 110°H x 15°V/40
Artnr. 495317
CLA 803
IP55, EN54-24 Column Line Array
240W – 119 / 122dB SPL
- Passive column array
- 8 x 3” full-range custom woofers with 0.7” voice-coils
- Frequency response from 140Hz to 20KHz
- Vertical dispersion angle selector: 110° H x 15° V (NARROW), 110° H x 40° V (WIDE)
- Ceramic screw-in connector with thermal fuse
- 100V / 120W line transformer with power selector (excludable)
- Extruded aluminum cabinet with powder coating
- Grille with hydrophobic fabric

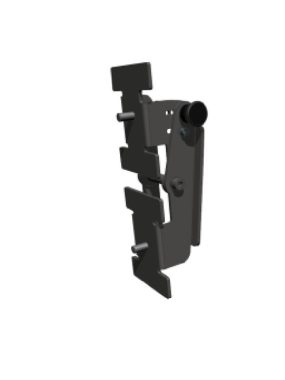

- Wide availability of accessories for installation
- Multiple CLA 803 and CLA 403 columns can be linked to increased SPL and coverage
- IP55 rating means suitable for outdoor installation
- EN54-24 certification means suitable for emergency and evacuation systems
- Ideal for fixed installations in reverberant environments where requiring heightened intelligibility of both music and voice
CONFIGURATION:
1 way
INPUT CONNECTOR:
ceramic terminal block
FREQUENCY RESPONSE:
140Hz - 20kHz -6dB
LOW FREQUENCY WOOFER:
8x3 - 0.75 coil inch
MAXIMUM SPL CONT/PEAK:
119/122 dB
DISPERSION:
110°x15° narrow mode / 110°x40° wide mode HxV
RECOMMENDED AMPLIFIER:
240 W RMS
LONG TERM POWER:
120 W
SHORT TERM POWER:
480 W
NOMINAL IMPEDANCE:
8 ohm
DIMENSION (WXHXD):
100 x 704 x 125 mm
WEIGHT:
4.7 Kg
