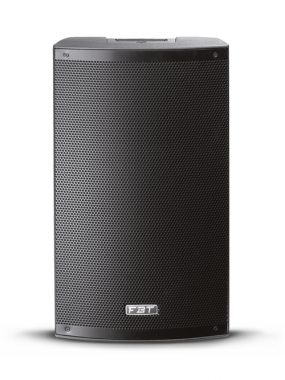

FBT X-LITE 12

2-way Passive speaker - 12" + 1" - 300Wrms - 90°Hx60°V

Artnr. 703679

Flera modeller tillgängliga

The FBT X-LITE 12 series speakers feature lightweight, yet rugged gas injected molded polypropylene cabinet construction. Available in black finish the FBT X-LITE 12 series speakers modern cabinet appearance provides fixed installations with an elegant design that blends into any decor. The asymmetrical shape of the FBT X-LITE 12 cabinet also allows use as a floor stage monitor. The FBT X-LITE 12 is two way design incorporating an 12″ low frequency woofer and 1″ HF compression driver coupled to a 90°H x 60°V constant directivity horn. With a frequency range of 56Hz – 20kHz the FBT X-LITE 12 speakers provide high fidelity sound for both speech and music applications with a maximum SPL of 125dB. Ideal for small fixed installations the FBT X-LITE 12 speaker have an impedance of 8 Ohm and the internal crossover is at a fixed frequency of 2kHz. The control panel features 2 x NL4 Neutrik speakon. 4 x M10 rigging points built into the cabinet along with the optional mounting brackets allow the FBT X-LITE 12 speaker to be surface mounted on walls or ceilings. A standard 1,38″ speaker stand socket allows the FBT X-LITE 12 to be mounted on speaker stand. A front face steel grille protects the speaker from external damage.

  • 2-way passive system
  • Polypropylene molded enclosure
  • FBT custom 12″LF woofer / 2″ voice coil
  • FBT 1″ throat / 1,4″ voice coil HF compression driver
  • 300W RMS recommended amplifier
  • 30° or 45° monitor taper
  • M10 rigging points
  • 90°H x 60°V constant directivity horn



System type
2 Way
Recommended amplifier
300W RMS
Long term power
150W
Short term power
600W
Nominal Impedance
8 Ohm
Frequency Response
56Hz - 20kHz (@-6dB)
Maximum SPL cont/peak
122/125dB
Dispersion
90° H x 60°V
Crossover frequency
2kHz
Recommended ext. DSP
FBT DLM26
Low Frequency Woofer
12” / 2” coil
High Frequency Driver
1” / 1,4” coil
Input Connectors
2 x speakon
Enclosure Material
polypropylene
Grille
Steel with powder coat black paint finish
Dimensions (WxHxD)
356 x 619 x 357 mm
Weight
16,4 kg
FBT XL-UV 12

Artnr. 703687

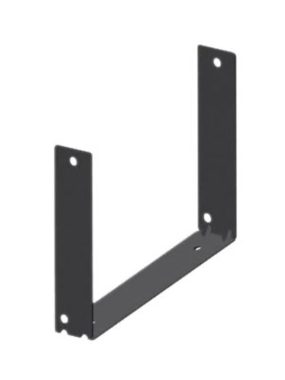

FBT XL-UV 12

U bracket vertical wall mount X-LITE 12

FBT XL-UH 12

Artnr. 703686

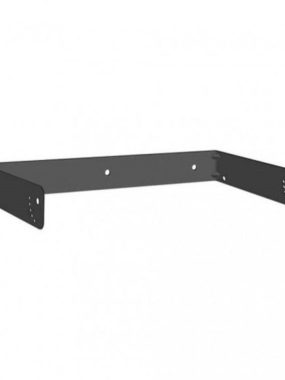

FBT XL-UH 12

U bracket horizontal wall mount X-LITE 12

FBT XL-C 12

Artnr. 703682

FBT XL-C 12

Cover for X-LITE 12
