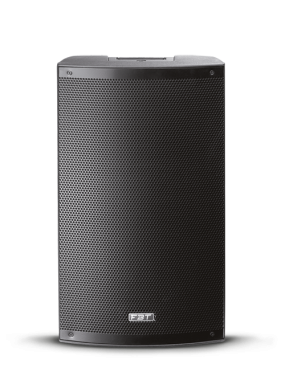

FBT X-LITE 15

2-way Passive speaker - 15" + 1" - 400Wrms - 90°Hx60°V

Artnr. 703678

Flera modeller tillgängliga

The FBT X-LITE 15 series speakers feature lightweight, yet rugged gas injected molded polypropylene cabinet construction. Available in black finish the FBT X-LITE 15 series speakers modern cabinet appearance provides fixed installations with an elegant design that blends into any decor. The asymmetrical shape of the FBT X-LITE 15 cabinet also allows use as a floor stage monitor. The FBT X-LITE 15 is two way design incorporating an 15″ low frequency woofer and 1″ HF compression driver coupled to a 90°H x 60°V constant directivity horn. With a frequency range of 53Hz – 20kHz the FBT X-LITE 15 speakers provide high fidelity sound for both speech and music applications with a maximum SPL of 126dB. Ideal for medium-large fixed installations the FBT X-LITE 15 speaker have an impedance of 8 Ohm and the internal crossover is at a fixed frequency of 1,8kHz. The control panel features 2 x NL4 Neutrik speakon. 4 x M10 rigging points built into the cabinet along with the optional mounting brackets allow the FBT X-LITE 15 speaker to be surface mounted on walls or ceilings. A standard 1,38″ speaker stand socket allows the FBT X-LITE 15 to be mounted on speaker stand. A front face steel grille protects the speaker from external damage.

  • 2-way passive system
  • Polypropylene molded enclosure
  • FBT custom 15″LF woofer / 2,5″ voice coil
  • FBT 1″ throat / 1,4″ voice coil HF compression driver
  • 400W RMS recommended amplifier
  • 30° or 45° monitor taper
  • M10 rigging points
  • 90°H x 60°V constant directivity horn



System type
2 Way
Recommended amplifier
400W RMS
Long term power
200W
Short term power
800W
Nominal Impedance
8 Ohm
Frequency Response
53Hz - 20kHz (@-6dB)
Maximum SPL cont/peak
123/126dB
Dispersion
90° H x 60°V
Crossover frequency
1,8kHz
Recommended ext. DSP
FBT DLM26
Low Frequency Woofer
15” / 2,5” coil
High Frequency Driver
1” / 1,4” coil
Input Connectors
2 x speakon
Enclosure Material
polypropylene
Grille
Steel with powder coat black paint finish
Dimensions (WxHxD)
433 x 706,5 x 400 mm
Weight
20,5 kg
FBT XL-UH 15

Artnr. 703684

FBT XL-UH 15

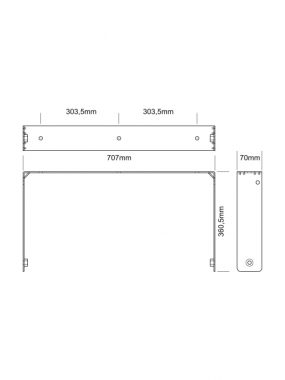

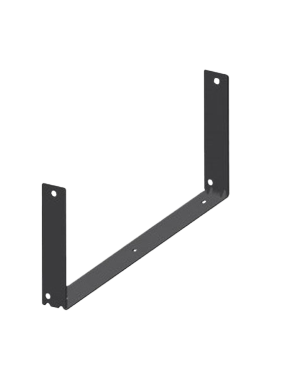

U bracket horizontal wall mount X-LITE 15

FBT XL-UV 15

Artnr. 703685

FBT XL-UV 15

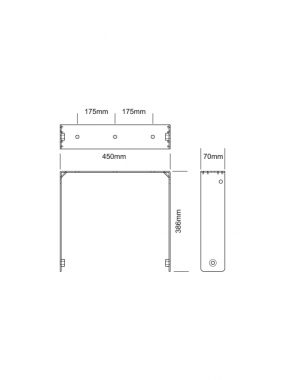

U bracket vertical wall mount X-LITE 15

FBT XL-C 15

Artnr. 703681

FBT XL-C 15

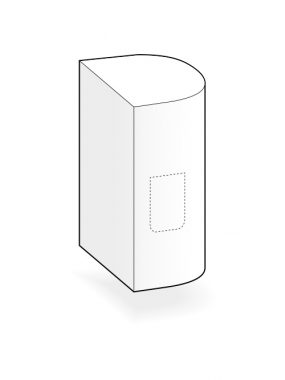

Cover for X-LITE 15
