Ljudsystem

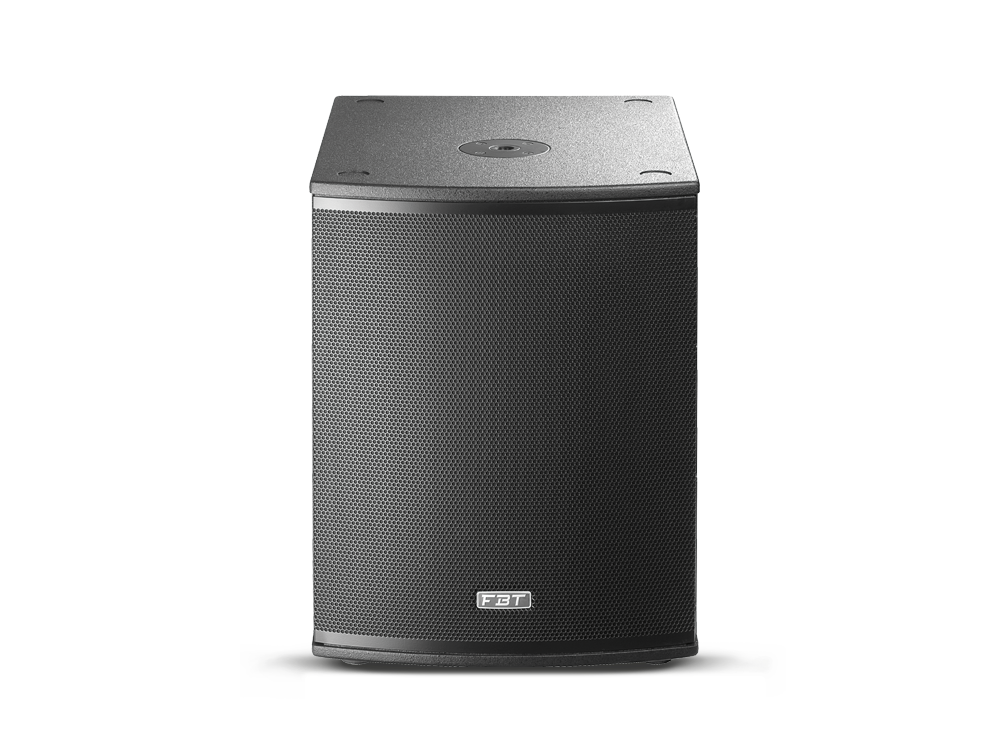

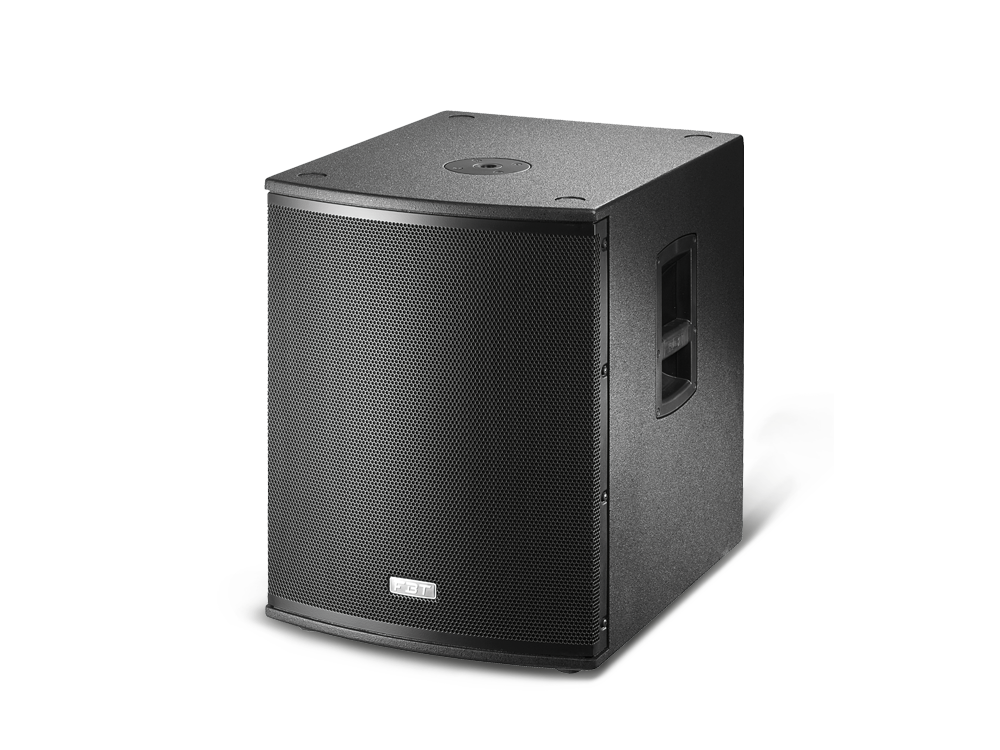

FBT X-SUB 15SA

Processed Compact Bass Reflex Active Subwoofer - 15" - 120

Artnr. 703536

Flera modeller tillgängliga

Beskrivning

Compact band-pass design subwoofer with high SPL and punch.
380mm (15”) high excursion woofer with 75 mm (3”) voice coil.
Frequency response from 42Hz to 120Hz.
1200W Class D power amplifier with switch mode supply.
Digital Signal processor with 4 presets, 2 equalization with 2 LPF crossover settings.
Control panel with stereo combo XLR/Jack in/outs, Stereo XLR HP-Filter outs, Volume, EQ presets, phase reversal switch 0°-180°, status LED indicators.
15mm plywood cabinet with scratch & scuff resistant paint finish.
M20 (20mm) top mount speaker stand socket, two FBT design aluminum handles, 80mm optional wheels.
Provides additional low frequency reinforcement when used along with X-PRO or X-LITE speaker series.

Specifikationer

DIMENSION (WXHXD):

455 x 586 x 570 mm

WEIGHT:

30 kg

INPUT CONNECTOR:

XLR ST with loop, XLR ST OUT

POWER CORD:

5/16.4 m/ft

MAXIMUM SPL CONT/PEAK:

131/135 half space dB

DISPERSION:

omni HxV

INPUT IMPEDANCE:

22 Kohm

BUILT-IN AMPLIFIER LF/HF:

1200 W RMS

FREQUENCY RESPONSE:

42Hz - 120Hz -6dB

LOW FREQUENCY WOOFER:

15 - 3 coil inch

CONFIGURATION:

1 way

Artnr. 703549

Cover for X-SUB 15SA

Artnr. 703550

FBT XS-CH 15S

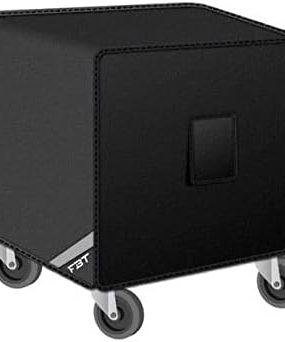

Cover for X-SUB 15SA with wheels

FBT X-SUB 15SA
