Högtalare
-
-

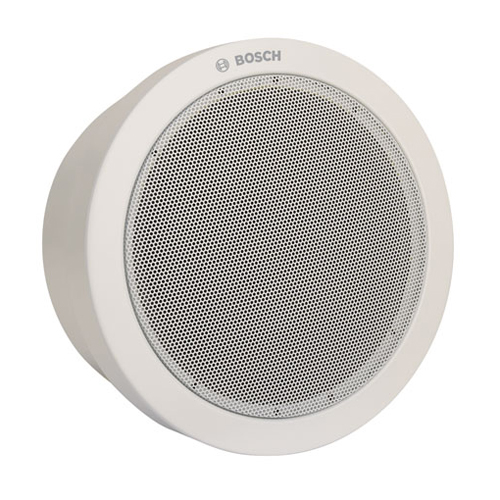

LB1-UM06E-1 Metal Cabinet Speaker 6W
Evac Cirkular
Artnr. 752101
• Suitable for speech and music reproduction
• Robust metal enclosure
• Surface and/or recessed mounting
• Provision for internal mounting of the optional line/loudspeaker supervision boards
• Recommended for voice evacuation systems
• Compliant with international installation and safety regulations
• EN 54-24 certified
• BS 5839-8 and EN 60849 compliant
The LB1-UM06E-1 circular metal cabinet emergency loudspeaker delivers professional performance from a robust, yet aesthetically designed metal enclosure. It is an ideal loudspeaker for indoor use in offices, schools, car parks, shopping centers, and in areas where vandalism is a potential hazard.
Dimensions
(W x D): 199 x 105 mm
Weight
1
Maximum power
23 kg
Rated power (PHC)
9 W
Power tapping
6 W
Sound pressure levelat 6 W / 1 W (1 kHz
6 / 3 / 1.5 / 0.75 W
1 m)
94 / 86 dB (SPL)
Sound pressure levelat 6 W / 1 W (4 kHz
105 / 97 dB (SPL)
1 m)
160 Hz to 20 kHz
Effective frequency range (-10 dB)
1 kHz / 4 kHz (-6 dB) 180° / 56°
Opening angleat
70/100 V
Rated input voltage
835/1667 ohm
Rated impedance
3-pole screw terminal block
Connector
White (RAL 9010)
Color
