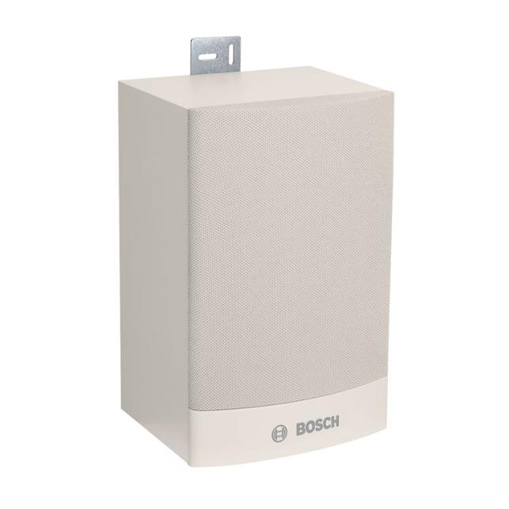

LB1-UW06-FL1 Cabinet Speaker 6W

White

Artnr. 752104

Flera modeller tillgängliga

The LB1-UW06-FL is a 6 W, general-purpose, cost-effective loudspeaker for indoor use. Two brackets, fixed to the rear panel, are provided for quick and easy mounting on a wall or ceiling. The cabinet is available in the colors black or white.

  • Good speech intelligibility and background music reproduction
  • Finished in white or black
  • MDF construction
  • Mounting brackets for wall or ceiling mounting
  • Complies with international installation and safety regulations
Dimensions (H x W x D)
240 x 151 x 139 mm
Weight
1.5 kg
Maximum power
9 W
Rated power
6 / 3 / 1.5 W
Sound pressure levelat 6 W / 1 W (1 kHz 1 m)
99 dB / 91 dB (SPL)
Sound pressure levelat 6 W / 1 W (4 kHz1 m)
100 dB / 92 dB (SPL)
Effective frequency range (-10 dB)
180 Hz to 20 kHz
Opening angle 1 kHz / 4 kHz (-6 dB)
Vertical 158° / 73° , Horizontal 165° / 95°
Rated input voltage
100 V
Rated impedance
1667 ohm
Connector
4-pole push-in terminal block
Color
Matches RAL 9010 / RAL 7044
