Högtalare
-
Utanpåliggande högtalare
-

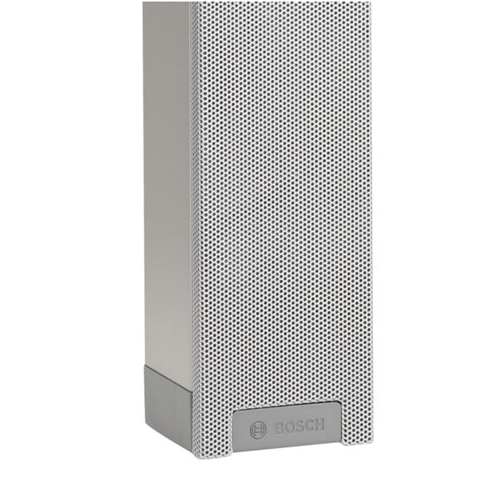

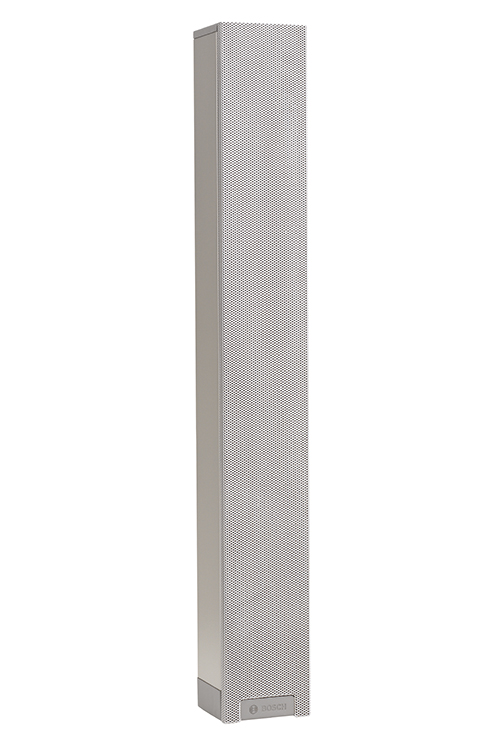

LBC3200/00 Line Array 45/30W
Artnr. 752130
• Extended listening area
• Excellent intelligibility of speech and music
• Uniform distribution of natural sound throughout the room
• Ideal combination of advanced acoustics and easy application
• EN 54-24 certified
This loudspeaker, with its good directivity, can handle small and medium indoor environments such as congress venues, meeting rooms, showrooms and canteens. The full frequency range of the LBC 3200/00 makes it ideal for speech as well as music reproduction. Its exceptionally narrow housing (only 8 cm wide) makes it extremely unobtrusive.
Dimensions (H x W x D)
600 x 80 x 90 mm
Weight
3 kg
Maximum power
45 W
Rated power
30 / 15 / 7.5 W
Sound pressure level at 30 W / 1 W (1 kHz, 1 m)
106 / 91 dB (SPL)
Sound pressure level at 30 W / 1 W (1 kHz, 4 m)
91 / 76 dB (SPL)
Effective frequency range (-10 dB)
190 Hz to 18 kHz
Opening angle: 1 kHz / 4 kHz (-6 dB) horizontal
220° / 130°
Opening angle: 1 kHz / 4 kHz (-6 dB) vertical
70° / 18°
Rated input voltage
100 V
Rated impedance
333 ohm
Connector
Screw terminal block
