Högtalare
-
Kapslingsklass IP65
-
CE-märkning
-
-
LBC3406/16 Horn 8 x 15″
Without Driver
Artnr. 752208

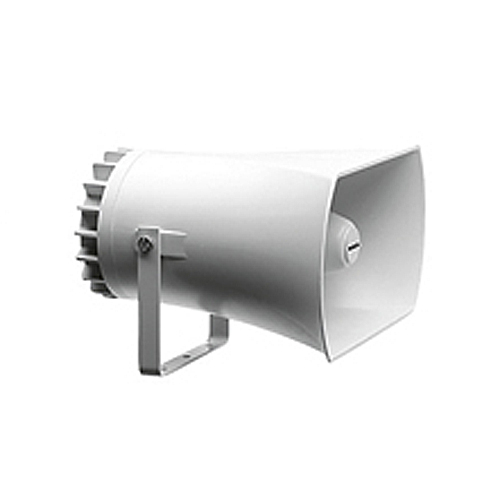

LBC 3406/16 Horn, Rectangular, 9 x 15″ without Driver
diameter = 235 x 390 mm
• Excellent acoustic properties
• Choice of driver units
• Water and dust protected to IP 65
• Versatile mounting bracket
• UV light resistant
• Self-extinguishing to UL 94 V0
• Provision for inside mounting of the optional line/loudspeaker supervision board
Opening angle
at 1 kHz/4 kHz (-6 dB): 100° / 35° horizontal - 65° / 30° vertical
Dimensions
(L x D): 422 x (390 x 235) mm
Weight
(without driver): 3.14 kg
Color
light grey (RAL 7035)
LBC 3406/16 Horn, Rectangular, 9 x 15″ without Driver
diameter = 235 x 390 mm
• Excellent acoustic properties
• Choice of driver units
• Water and dust protected to IP 65
• Versatile mounting bracket
• UV light resistant
• Self-extinguishing to UL 94 V0
• Provision for inside mounting of the optional line/loudspeaker supervision board
